Versioning

Overview

Each new release of Gateway API is defined with a "bundle version" that represents the Git tag of a release, such as v0.4.0. This contains the following:

  • API Types (Go bindings for the resources)
  • CRDs (Kubernetes definitions of the resources)
  • Validating Webhook

API Versions (e.g. v1alpha2, v1beta1)

Within Gateway API, API versions are primarily used to indicate the stability of a resource. For example, if a resource has not yet graduated to beta, it is still possible that it could either be removed from the API or changed in backwards incompatible ways. For more information on API versions, refer to the full Kubernetes API versioning documentation.

Lifecycle of New Gateway API Resources

Release Channels (e.g. Experimental, Stable)

Gateway API provides 2 release channels: an Experimental one and a Stable one.

The Stable release channel includes:

  • Resources that have graduated to beta
  • All fields that have graduated to stable and are no longer considered experimental

The Experimental release channel includes everything in the Stable release channel, plus:

  • Alpha API resources
  • New fields that are considered experimental and have not yet graduated to the stable channel

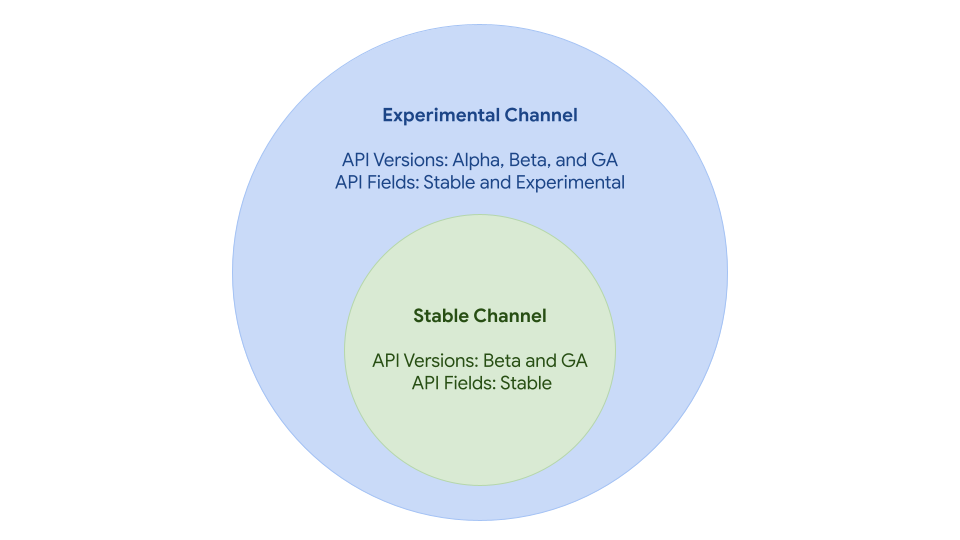

Release Channel Overlap

Release channels are used to indicate feature stability within Gateway API. For example, even if a resource has already graduated to beta, we need a way to test out new fields and features before committing to their long term stability. With upstream Kubernetes APIs, this is accomplished with feature gates. Unfortunately, CRDs do not have a similar concept yet.

Instead of trying to recreate feature gates in this project, we've introduced release channels. Starting in v0.5.0, all new fields and features will start in the Experimental release channel. From that point, these may graduate to the Stable release channel or be dropped from the API entirely. See GEP-922 for a more detailed discussion of this approach to new fields and features.

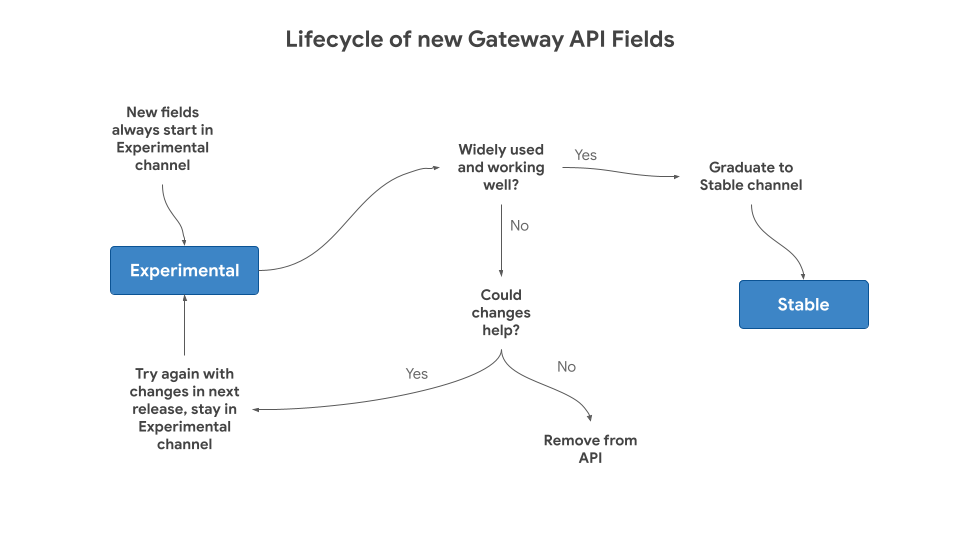

Lifecycle of New Gateway API Fields

Version Indicators

Each CRD will be published with annotations that indicate their bundle version and channel:

gateway.networking.k8s.io/bundle-version: v0.4.0
gateway.networking.k8s.io/channel: stable|experimental

What can Change

When using or implementing this API, it is important to understand what can change across API versions.

Patch version (e.g. v0.4.0 -> v0.4.1)

  • Clarifications to godocs
  • Updates to CRDs and/or code to fix a bug
  • Fixes to typos

Minor version (e.g. v0.4.0 -> v0.5.0)

  • Everything that is valid in a patch release
  • New experimental API fields or resources
  • Loosened validation
  • Making required fields optional
  • Removal of experimental fields
  • Removal of experimental resources
  • Graduation of fields or resources from experimental to stable track
  • Introduction of a new API version, which may also include:
  • Renamed fields
  • Anything else that is valid in a new Kubernetes API version
  • Removal/tombstoning of beta fields
  • Removal of an API resource following Kubernetes deprecation policy

Major version (e.g. v0.x to v1.0)

  • There are no API compatibility guarantees when the major version changes.

Out of Scope

Unreleased APIs

This project will have frequent updates to the master branch. There are no compatibility guarantees associated with code in any branch, including master, until it has been released. For example, changes may be reverted before a release is published. For the best results, use the latest published release of this project.

Source Code

We do not provide stability guarantees for source code imports. The Interfaces and behavior may change in an unexpected and backwards-incompatible way in any future release.
